Eps Machine Manufacturer Eps Foam Crusher Recycle Recycling System Machine

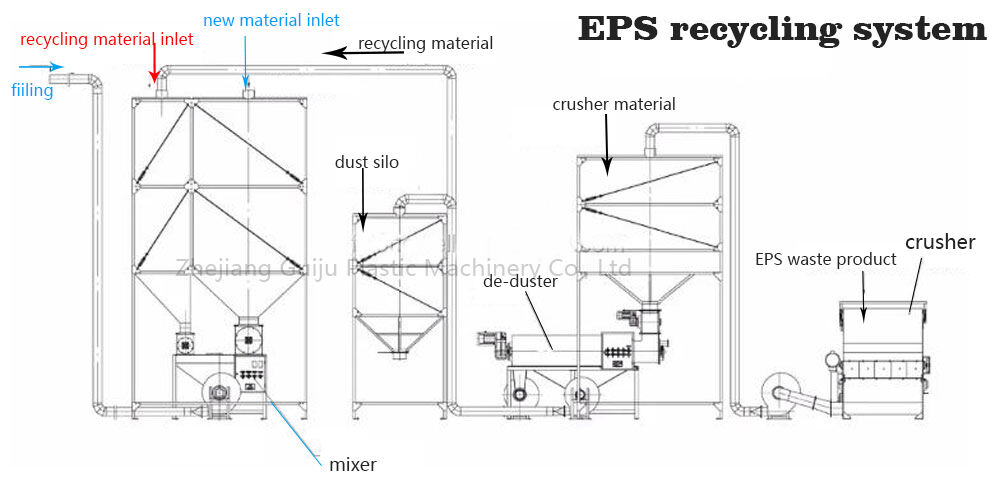

EPS recycling system including crusher, de-ductor and mixer. This system can crush the wast eps foam product into the beads and de-dust the beads, then mixing with the new eps material, then start to produc the eps foam block.

Top sales eps recycling system

Technical data

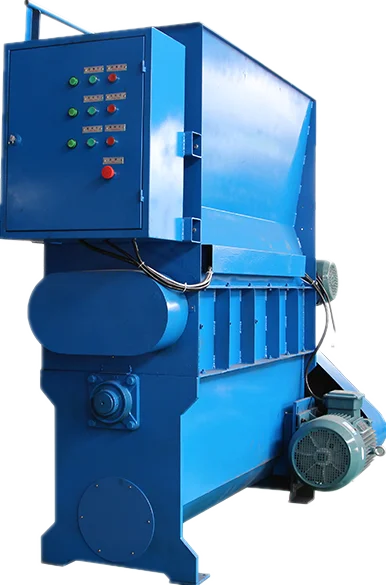

1. crush machine Capacity: around 320kg/h or 25 m3/h

2. Diameter of beads: 4~8 mm

3. Connect load: 15.8kw, 380V,50HZ

4. Weight: 1360 kg
5. Machine Main Size: 1600*600*2100 mm                                                                                                                 6. Input size: 1200*1200*400mm

7. With transmitting air blower motor, crusher, with three main crush
8. shaft Note: Schneider electronic parts, Chnt control box Will equip feed conveyor for safety and easy operation

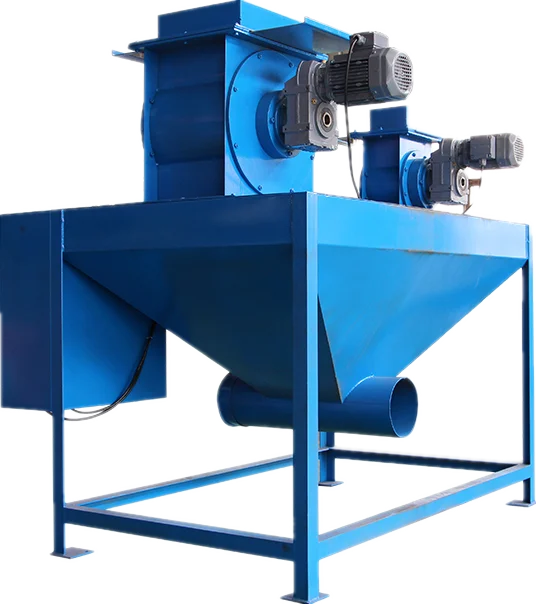

de-dust machine

1. Capacity: 30m3/hour

2. Connect load: 5.32kw, 380v, 50hz

3. Motor: 0.37kw, 0.55kw, 2.2*2kw.

4. De duster size: 2797×840×1888mm

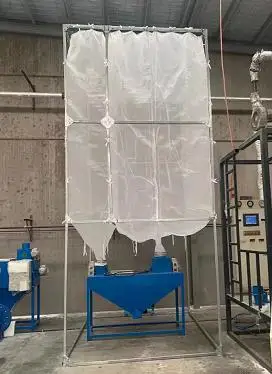

5. Dust collector size: 1200×800×3800mm with                                                                                                            6. cloth bag With Schneider electronic parts, Chnt control box and speed adjust motors.
7. Including de-dust machine, material feeding blowers and top cloth anti dust silo, dust collector with 7 cloth bags

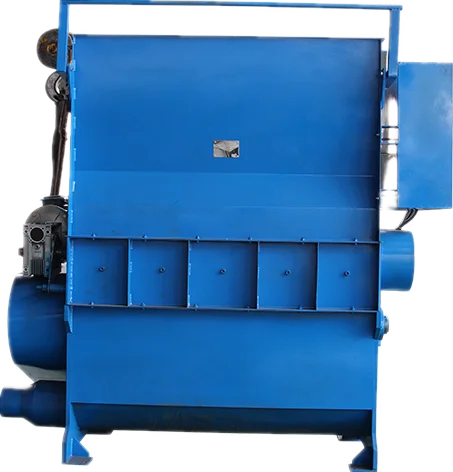

Mixer machine

1. Capacity: 55~100m3/h

2. Proportion:6%~20%

3. Connect load: 4. 5kw

4. Dimension (including silo):

3050X2050X5700mm With Schneider                                                                                                                          5. electronic parts and Chnt control box                                                                                                                         6. Including: Transfer Blower,  frequency converter with motors, top silos
